OpenID Connect Authentication

To allow users to sign in to the WebGIS Portal via OpenID Connect, the following must be set in portal.config:

<!-- Security -->
<add key="security" value="oidc" />                  <!-- windows, token, clientid, forms, anonym (url) -->
<add key="security_allowed_methods" value="oidc" /> <!-- allowed methods separated by commas, no spaces !! -->

The file _config/application-security.json must also be adjusted. It contains the properties such as Authority, ClientId, and similar values for the OpenID Connect login:

{
  "identityType": "oidc",
  "oidc": {
    // example for Keycloak
    "authority": "http://localhost:8080/realms/webgisrealm",
    "clientId": "webgis-portal",
    "clientSecret": "",
    "scopes": ["openid", "roles"],

    // claims
    "claimsFromUserInfoEndpoint": true,
    "nameClaimType": "preferred_username",

    // optional (roles)
    "roleClaimType": "roles",  // optional, only if roles are present in the token
    "roleClaimValueSeparator": ","  // optional, only if multiple roles in the token are separated by a delimiter
  }
}

Azure AD

Login via Azure AD is also supported. It is again an OpenID Connect login, but the configuration in _config/application-security.json must be adjusted:

{
  "identityType": "azure-ad",
  "azure-ad": {
    "Instance": "https://login.microsoftonline.com/",
    "Domain": "{my-domain}.onmicrosoft.com",
    "TenantId": "{my-tenant-id}",
    "ClientId": "{my-client-id}",

    // optional (roles)
    "extended-roles-from": "windows",  // optional, only if roles should come from the local AD
    // or
    "roleClaimType": "roles",  // optional, only if roles are present in the token
    "roleClaimValueSeparator": ","  // optional, only if multiple roles in the token are separated by a delimiter
  }
}

The parameter extended-roles-from = windows is optional. In this mode, only the user name is taken from the Azure login, while the groups for that user are read from the Windows AD (LDAP).

If roles or groups are present directly in the Azure token, they can be read using roleClaimType and roleClaimValueSeparator. There can be multiple claims with the roleClaimType in the token, or several roles in a single claim separated by a delimiter such as a comma.

OpenID Connect login tile

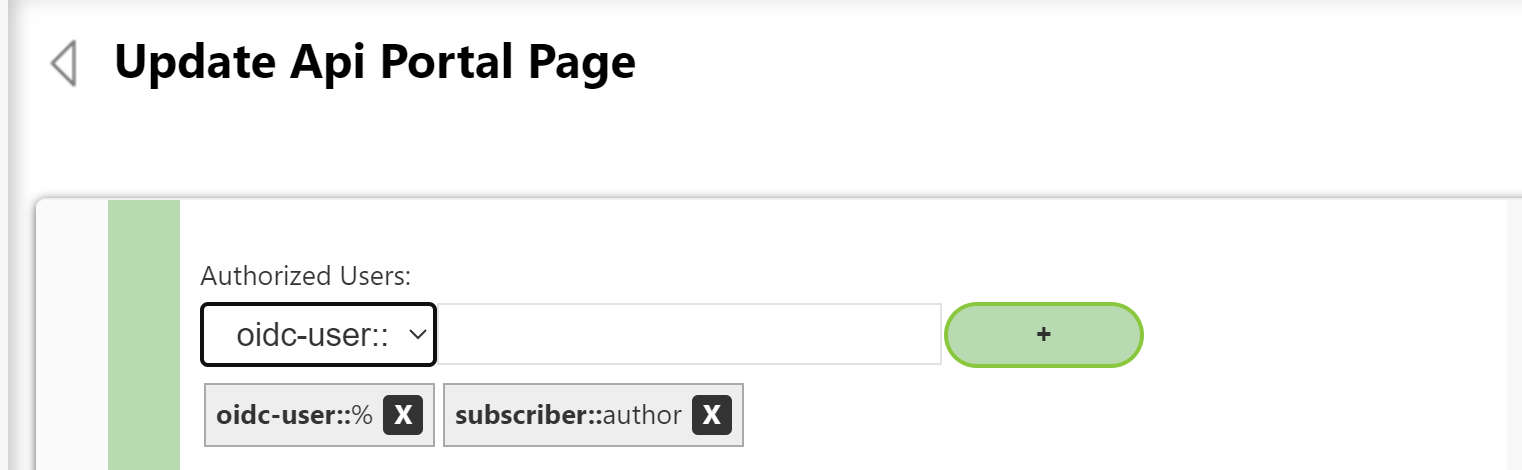

To allow users to sign in via OpenID Connect on a WebGIS Portal page, the page security must also be adjusted (in the WebGIS API as subscriber login → Pages → select the corresponding page).

../../_images/openid1.png

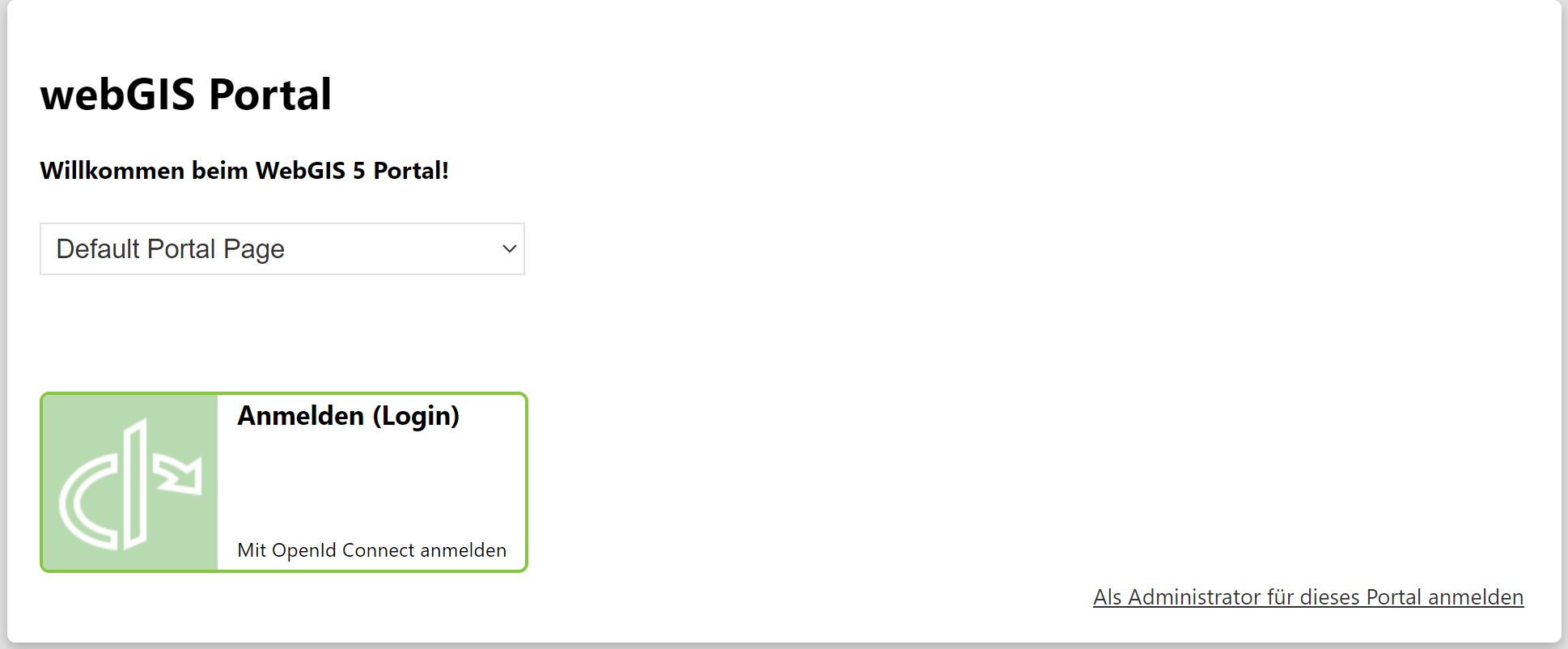

With this setting, the WebGIS Portal start page will show the option Sign in with OpenID Connect:

../../_images/openid2.png
