Snapping SettingsΒΆ
Snapping is essential for accurately constructing geo-objects. In this process, the drawing cursor is snapped to certain objects when it is near them. Any number of snapping schemas can be created for each service, which in turn can contain multiple topics. It is possible to snap to vertices and edges.
The user is generally responsible for choosing the correct snapping topic. If snapping is mandatory during editing, or if the snapping topic differs depending on the edit theme, it is recommended to specify snapping topics automatically.

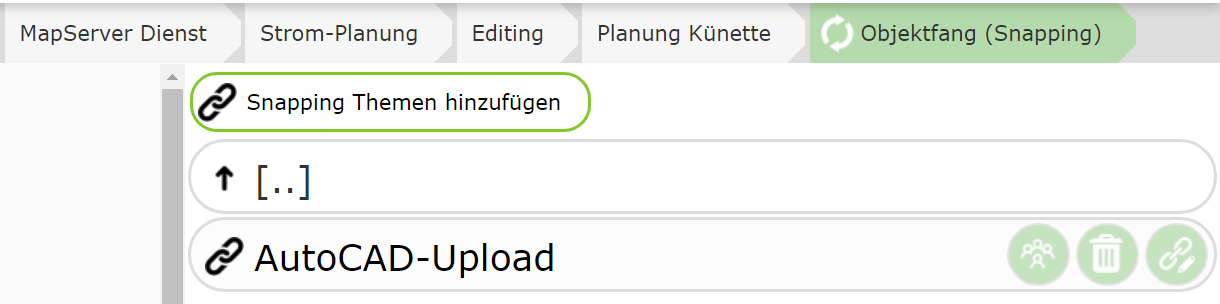

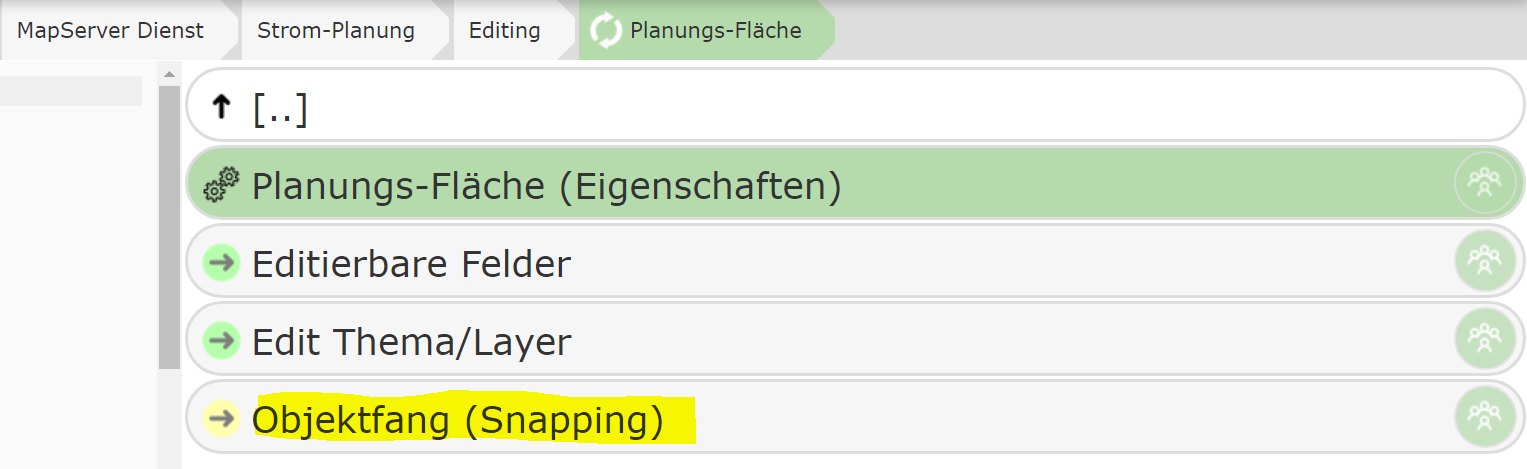

This is done under a specific node. The snapping topics specified here are automatically applied when the user sets up an edit theme:

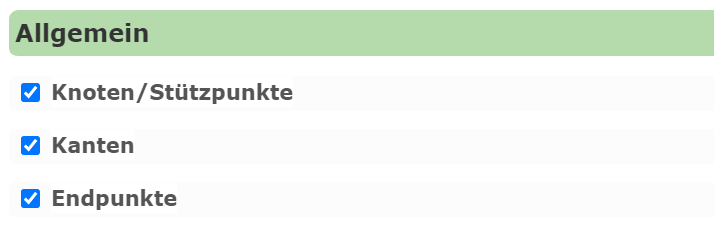

In the settings, you can also specify which snapping options are automatically set for this topic:
