Parameterization¶

The navigation tree on the left shows the structure of the endpoints, queries, and views. Simply clicking an element allows it to be quickly selected and edited.

Endpoint¶

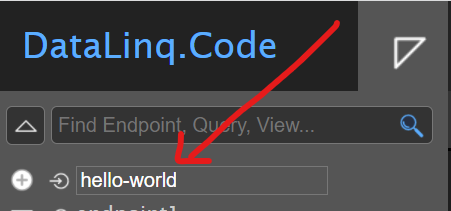

A new endpoint can be created directly in the sidebar. The top input field allows you to assign a name, which is confirmed with Enter.

Important

Endpoint names may only contain lowercase letters, numbers, and the hyphen (`-`). Special characters should be avoided, since the names later become part of the call URL.

Clicking on an endpoint opens the properties dialog, in which the following settings can be made:

Settings¶

The following overview lists all sections of the properties dialog with their respective fields:

Field	Description
General
`EndPoint Id`	Unique name of the endpoint for the URL call
`Name`	Name of the endpoint
`Description`	Optional description
Connection
`EndPoint Connection Type`	The following connection types are possible: Database API (REST interface) GeoRss GeoJson DataLinq PlainText TextFile Cypher JsonApi
`ConnectionString`	The configuration varies depending on the connection type. Database: Example of an `SQL Server` connection: SQL:Server=db123.firma.at\instanz;Database=ssg;User Id=user1;Password=pwd1; API (REST interface): Example of a `WebGIS API REST` connection: service=http://server123.at/api5test;user=username;pwd=12345 GeoRss: service=https//some.georss.com;user=username;pwd=12345 GeoJson: See GeoRss. DataLinq: Another `WebGIS DataLinq service`; the connection string is the URL of the application. PlainText: Data is queried as line-based text; can be left empty. Cypher: Example of a `Neo4j` connection: url=neo4j://urltodb:7687;username=userName;password=super_secret JsonApi: Example of a `JsonApi` connection: https://urltomyapi.com/ TextFile: Data sources are loose text files (.txt, .log, .csv). C:\logs Note This specifies the directory* in which the text files are located. Multiple text files can be located in one directory, which are then addressed via the query.
Security	Set permissions for users and roles (see Permissions).
Info
`Created`	Creation date of the endpoint
Styling
`Open EndPoint CSS Button`	Editing the CSS document for all associated views
Scripting
`Open EndPoint Javascript Button`	Editing the script document for all associated views
Delete
`Delete Button`	Deleting the endpoint

Query¶

After selecting an endpoint, queries can be created for it. The queries enable access to the associated data.

A new query node can be created directly in the sidebar, below the desired endpoint:

Clicking on the new query opens an editor window in the content area, in which the query can be formulated.

The options and syntax for the query differ depending on the EndPoint Connection Type.

EndPoint Connection Type

Example

Database (SQL)

Query with a set filter value

With color filter: DATALINQ-URL-PFAD/select/endpoint@query?GebaeudeArt=Einfamilienhaus&Dachfarbe=rot
Without color filter: DATALINQ-URL-PFAD/select/endpoint@query?GebaeudeArt=Einfamilienhaus

SQL query:

SELECT
    [NAME],
    [FARBE]
FROM projekt_gebaeude
WHERE gebaeudeart = @GebaeudeArt
#if Dachfarbe
    AND FARBE = @Dachfarbe
#endif

REST

Here too, URL parameters passed along with the query URL can be forwarded to the REST API being queried.

Example: DATALINQ-URL-PFAD/select/endpoint@query?parameter1=wert1&parameter2=wert2

https://server123.at/api?p1=parameter1

#if parameter2
    &p2 = @parameter2
#endif

The resulting URL of the REST API being queried would be (if parameter2 is set) https://server123.at/api?p1=parameter1&p2=parameter2, otherwise https://server123.at/api?p1=parameter1

Text files (CSV)

Hint

Columns in CSV files must be separated with ;.
If a header row is present, it must be removed. The individual columns can be addressed as column1, column2, column3, …

Warning

The file must be located in the endpoint’s directory. This directory is specified in the endpoint’s connection type.

The following parameters can be defined in the query:

my-datafile.csv # Die Quelldatei, welche die Datensätze enthält

maxlines=10     # Maximale Anzahl der Zeilen (optional)
from=bottom     # Von unten lesen (optional)
filter=xxx      # Filterbedingung (optional)

A filter can be used to extract only the data rows that contain the text defined in the filter (case-insensitive). This can be helpful for searching large amounts of data and extracting only relevant information.

Example of a URL with a filter:

In this example, the URL DATALINQ-URL-PFAD/select/dh-form@get?_pjson=true&GebaeudeArt=Einfamilienhaus filters only the records where the respective row in the CSV file contains the value Einfamilienhaus.

Filter condition in the query:

my-datafile.csv

...

#if GebaeudeArt
   filter={{GebaeudeArt}}
#endif

This ensures that the filter is only applied if the value GebaeudeArt is defined. Otherwise, the filter is not applied, and all rows of the text file are included in the query.

Settings¶

The settings for the respective query can be accessed by clicking the gear icon in the bottom-right corner of the editor window.

Field	Description
Link
`Route`	URL route for the query (`endpoint_id@query_id`)
General
`Query Id`	Unique name of the query (used in the URL)
`Name`	Name of the query
`Description`	Optional description
Debug

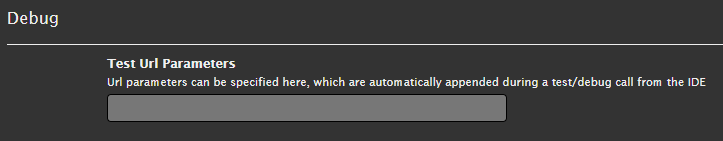

`Test Url Parameters`	Test parameters for the query can be defined and executed here. Hint The test parameters should be chosen so that test queries can always be executed.
Http Header	If JsonApi was chosen as the type under `EndPoint Connection Type` for the associated endpoint, HTTP headers can be passed along in the query settings. Up to 10 key-value pairs can be defined. `{$key}` accesses a secret from the secrets manager. `{&key}` accesses a constant.
Security	Set permissions for users and roles (see Permissions).
Domains
`Domains`	Query domains are used to replace encoded values in a table with understandable names, by using a lookup table that contains the encoded values and their translations. `Destination Field`: name of the column that contains the encoded values. `Query Id`: lookup table that contains encoded values and their translations. `Value Field`: column name in the lookup table that contains the encoded values. `Name Field`: column name in the lookup table that contains the translations.
Info
`Created`	Creation date of the query
Delete
`Delete Button`	Deleting the endpoint

Views¶

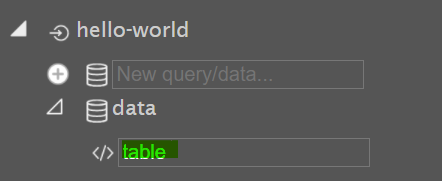

One or more views can be created to display the results of a query.

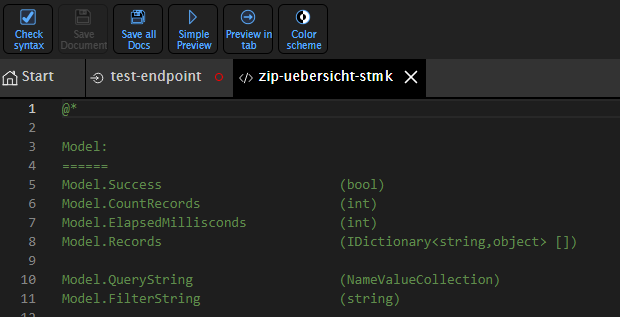

Views use HTML with ASP.NET Razor markup.

Settings¶

The settings for the respective query can be accessed by clicking the gear icon in the bottom-right corner of the editor window.

Field	Description
Link
`Route`	URL route for the view (`endpoint_id@query_id@view_id`)
General
`View Id`	Unique name of the view (used in the URL)
`Name`	Name of the view
`Description`	Optional description
Debug
`Test Url Parameters`	Test parameters for the query can be defined and executed here. Hint The test parameters should be chosen so that test queries can always be executed.
JS Libraries	The currently available JS libraries for the view can be added here.
PDF Report mode	Settings for a PDF report. More on this under pdfreporting.rst.
DataLinq Cache Token	Settings for the DataLinq cache token. More on this under use-cache-token-for-one-2-n-links.
Info
`Created`	Creation date of the view
`Changed`	Modification date of the view
Delete
`Delete Button`	Deleting the endpoint

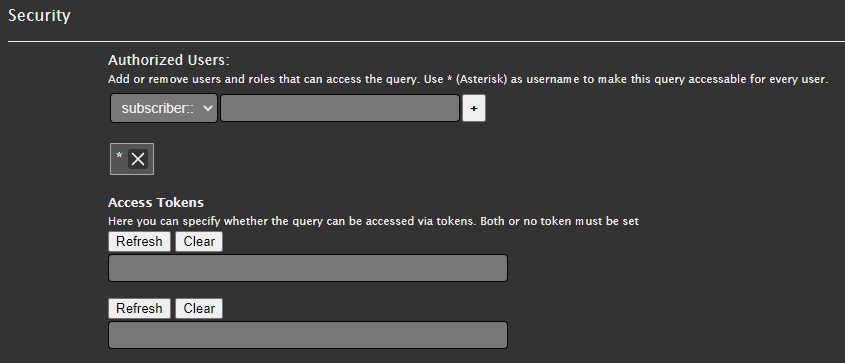

Permissions¶

Permissions can be set in the settings for endpoints and queries, which are inherited hierarchically.

Note

Hierarchically means: anyone who does not have access to an endpoint also cannot execute its queries.

Permissions can be set for individual users, roles, or groups.
Token and portal authentication are also possible.

Permissions are managed via the “+” icon or by pressing Enter.

Warning

Wildcards can also be assigned here using the string “*”. This string means unrestricted access for all users.

Styles (CSS)¶

CSS styles can be defined at two levels:

Global styles for the entire endpoint.
Inline styles directly in a view via <style> tags or style attributes.
