PDF Reporting in DataLinq

With PDF Reporting in DataLinq, reusable report templates can be created that are called with parameters and rendered as a PDF. Typical use cases include, among others:

  • Invoices

  • Letters

  • Info sheets

  • project-specific evaluations

Feature Overview

PDF templates can be filled with parameters when called. This allows content to be generated dynamically per record, user context, or process step.

Optionally, reports can also be supplemented via user input, for example via input fields for:

  • Name

  • Date

  • other domain-specific parameters

The generated PDF documents are available for download directly in the browser. The download can either:

  • be triggered from the view of the PDF template itself, or

  • be triggered from another view via a helper.

Creating PDF Templates

PDF templates are created, like other DataLinq views, in the DataLinq Code Editor. The following technologies can be combined:

  • HTML

  • CSS

  • JavaScript

  • Razor

  • special @PDF helpers for PDF reporting

This allows layout, data binding, and output format to be flexibly controlled, from simple standard documents to complex, dynamic reports.

Enabling PDF Reporting Mode

To create a PDF template, a new view is first created. Then, in the view’s settings under PDF Reporting mode, the desired mode can be enabled.

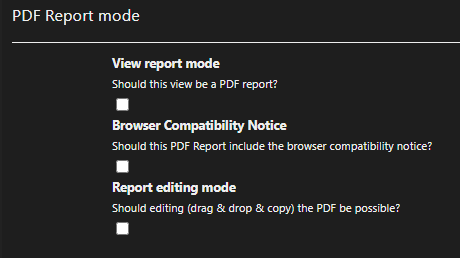

Settings for PDF Reporting mode

Three checkboxes are available in the PDF Reporting mode section:

  1. View report mode

    Enables PDF report mode for the current view. The view is then treated as a PDF report.

  2. Browser Compatibility Notice

    Shows users a notice when the view is called, stating that a current browser should be used for optimal rendering. The user must confirm the notice.

  3. Report editing mode

    Enables editing mode for reports. This allows administrators to position elements via drag and drop, in addition to the DataLinq markup code. Detailed information on this follows in a further chapter.

Creating a PDF Template

To create a report with one or more pages, the prebuilt @PDF helpers are used.

Additional support for using the helpers can be found in:

  • the DataLinq help

  • the DataLinq sandbox

A simple report with exactly one page and no further additional functions can be created as follows:

@PDF.BeginReport()

    @PDF.NewPage()

        <h1>Simple Report</h1>

    @PDF.EndPage()

@PDF.EndReport()

In this example, a report is first started, and then a page with a heading is inserted.

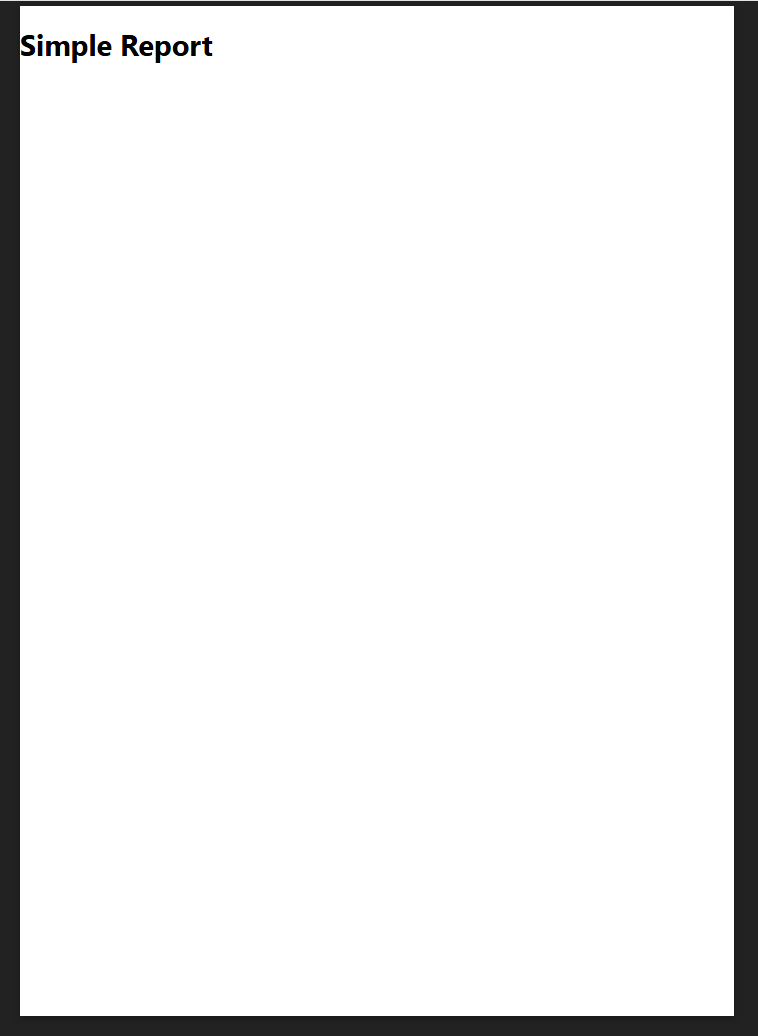

Simple PDF report with one page

Explanation of the @PDF Helper Functions

@PDF.BeginReport()

The helper @PDF.BeginReport() marks the beginning of a report.

The following parameters are available:

  • pageNumberOptions:

    Settings for automatic page numbering. This can be used to specify:

    • whether page numbers are used,

    • the position (left, center, right),

    • the display style (e.g. 1 or 1/X),

    • how many pages should be skipped at the start (e.g. for a cover page).

    Example:

    pageNumberOptions: new Dictionary<string, object>() {
                {"UsePageNumbers", true},
                {"Position", 1},
                {"Type", 0},
                {"SkipPages", 0}
}
  • quality:

    Specifies the output quality for the download. Possible values are: PdfQuality.Preview, PdfQuality.Low, PdfQuality.Medium, PdfQuality.High, PdfQuality.Best.

  • download_button:

    bool value that controls whether a download button is shown directly to the user in the template view.

  • fileName:

    File name of the downloaded PDF file. The default value is dataLinqPdfReport.pdf.

Complete example:

@DLH.BeginPdfReport(pageNumberOptions: new Dictionary<string, object>(){
                {"UsePageNumbers", true},
                {"Position", 3},
                {"Type", 0},
                {"SkipPages", 0}},
            download_button:true,
            fileName: $"Example_{@Guid.NewGuid().ToString()}",
            quality: PdfQuality.Medium
)

@PDF.NewPage()

The helper @PDF.NewPage() is used to start a new page.

The following parameters are available:

  • pageTemplateOptions:

    Can be used if a page should access an existing template in addition to its own content. A typical use case is a central corporate-design template with a header and footer that is reused on all pages. This means the shared frame does not need to be redefined on every page.

    Example:

    pageTemplateOptions: new Dictionary<string, object>() {
                {"UsePageTemplate", true},
                {"TemplateId", "datalinq-guide@pdf@pdf-template"}
}

    • UsePageTemplate (bool): enables the use of a template.

    • TemplateId: DataLinq ID of the template view to use.

    Note

    For templates (e.g. headers and footers), the contained elements should always be positioned absolutely. Otherwise, the template elements can shift as soon as additional content is inserted into the page.

    Example:

    <h1 style="position: absolute; top:150px; left:150px;"></h1>

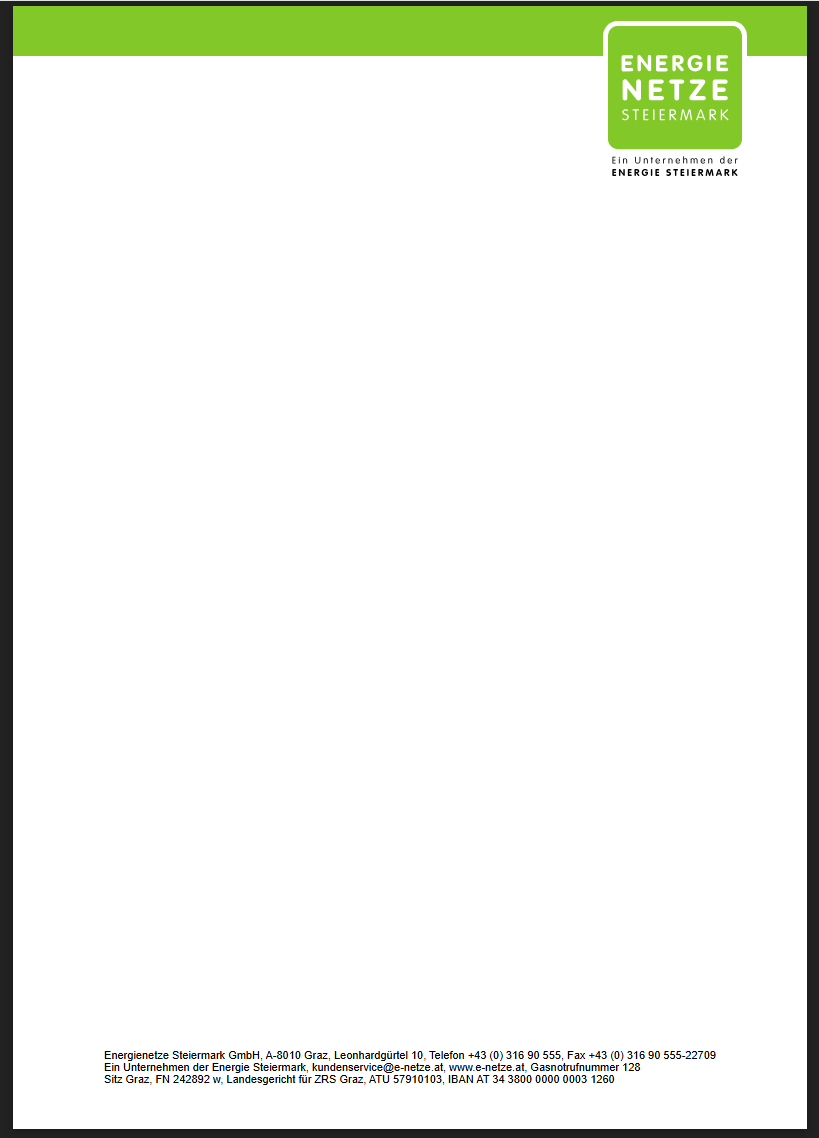

Example of using a PDF page template
  • landscape:

    true rotates the page to landscape orientation. The default is false (portrait).

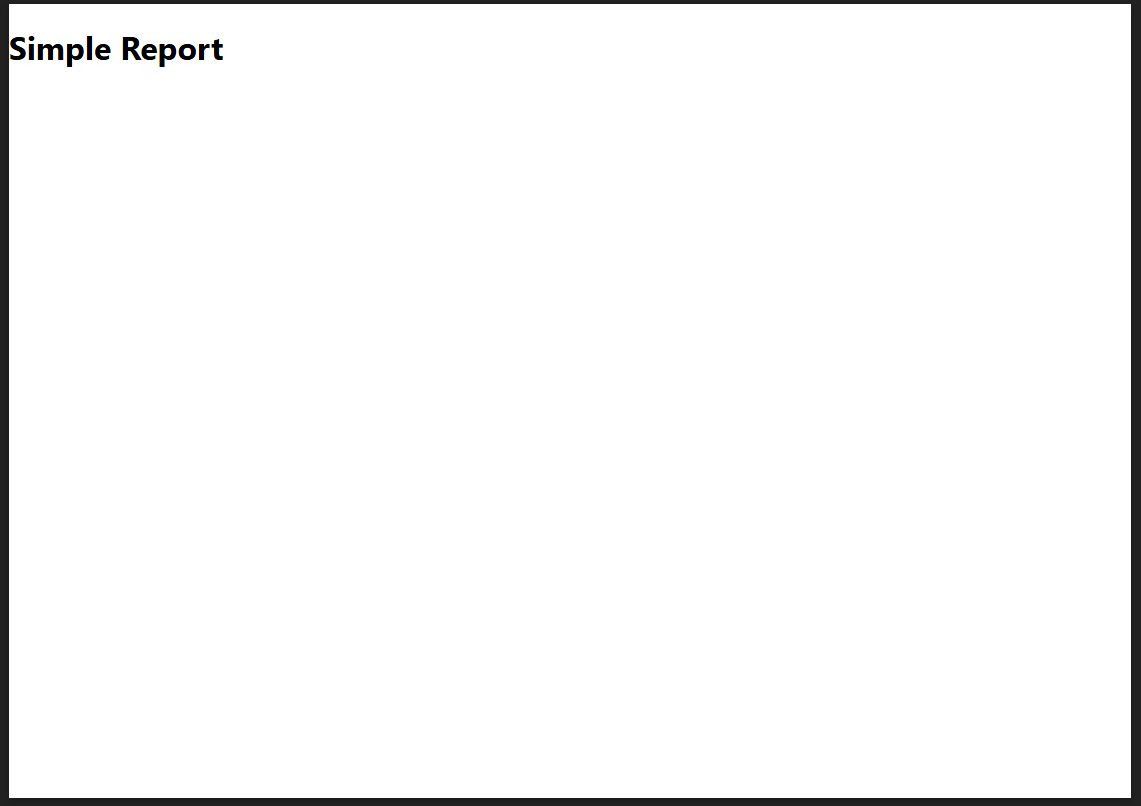

Example of landscape orientation
  • paperSize:

    Sets the page size via the PaperSize enum. The default is A4. A1 through A6 are possible. The paper sizes can be combined with landscape and used mixed within a report.

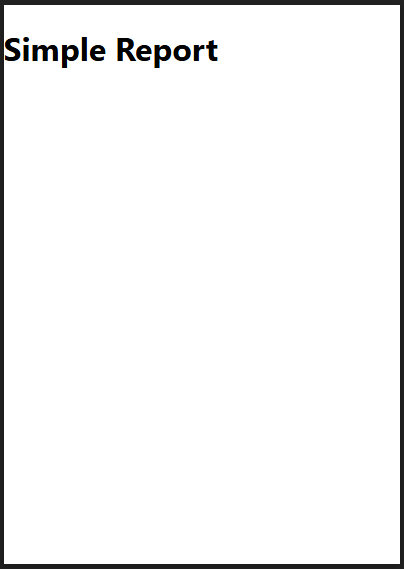

Example of different paper sizes
  • dynamicTableOptions:

    Used to automatically split content from tables and flat hierarchies across multiple pages when the space on the current page is not sufficient due to dynamic table content.

    Example:

    dynamicTableOptions: new Dictionary<string, object>() {
                {"Dynamic", true},
                {"DynamicUseTemplate", true},
                {"DefaultMarginTop", 220},
                {"DefaultMarginBottom", 110},
                {"RepeatHeader", true}
}

    • Dynamic (bool): enables dynamic page splitting.

    • DynamicUseTemplate (bool): specifies whether a template is also used for dynamically generated pages.

    • DefaultMarginTop (int): default top margin for newly generated pages, e.g. for header areas from the template.

      This value only applies to additionally generated pages. If a minimum top margin is needed on the first page, this can be implemented with <div style="height:XYZ px"></div>.

    • DefaultMarginBottom (int): minimum bottom margin, e.g. for footer areas; also applies to the first page.

    • RepeatHeader (bool, default true): if set to false, the table header row is not repeated on subsequent pages for split tables.

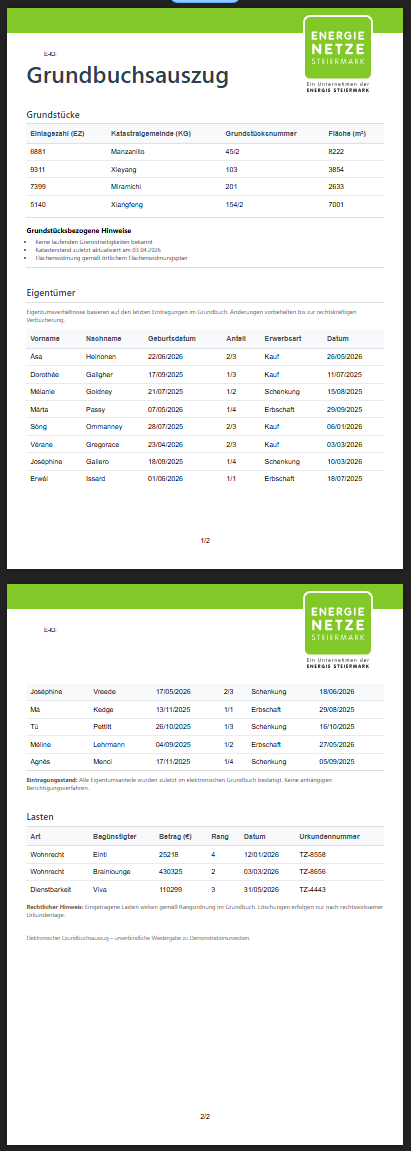

Example of automatic splitting across multiple pages

Notes on Auto-Splitting

With auto-splitting, table content is automatically distributed across subsequent pages when the space on a page is not sufficient.

Important for the structure:

  • Tables that should be automatically split must not be nested inside other containers (for example, inside a div).

  • This rule also applies to tables that are included via @DLH.IncludeView.

  • When splitting, only the rows of a table are split.

All other HTML elements are treated as a flat hierarchy and are not broken down into sub-sections. This means: elements such as div, h1, or p are always treated as a whole. If such an element no longer fits completely on the current page, it is positioned as a whole block on the next page.

@PDF.EndPage()

The helper @PDF.EndPage() marks the end of a PDF report page. Everything defined between @PDF.NewPage() and @PDF.EndPage() is rendered on this page.

The helper has no further parameters.

@PDF.EndReport()

The helper @PDF.EndReport() marks the end of the PDF report.

The helper has no further parameters.

@PDF.NewDraggable() / @PDF.EndDraggable()

The two helpers must always be used together:

  • @PDF.NewDraggable(...) opens the draggable area.

  • @PDF.EndDraggable() closes the draggable area.

The content between these two helpers is treated as a single connected element and can be moved via drag and drop, if PDF Editing Mode is enabled in the view settings.

Parameters of @PDF.NewDraggable(...):

  • x: X position of the element.

  • y: Y position of the element.

Notes on usage:

  • Right-clicking the draggable element copies the current x and y values to the clipboard.

  • Use is only recommended on fixed pages, i.e. without auto-splitting.

    On dynamically split pages, the positioning may otherwise behave unpredictably.

  • On a PDF page, Ctrl+M can be used to show/hide a grid with center lines.

  • If Ctrl is held down while moving an element, it can snap to the center lines.

  • If the center lines are disabled (Ctrl+M), elements can instead snap to other elements (snapping).

@PDF.PrintPdfButton(…)

The helper @PDF.PrintPdfButton(string id, string buttonText = "Print", Dictionary<string, string> parameters = null) can be used to download a report with parameters from another view.

This creates a button that starts the download directly, without having to show the user the actual template.

Parameters:

  • id: unique ID of the button.

  • buttonText: label of the button (default: Print).

  • parameters: optional parameters as a Dictionary<string, string>, passed along when the report is called.
