Tips and Tricks for Views

Accessing Query Results

The results of the query are passed to the view as a model:

  • Model.Success

  • bool

  • whether the query was successful

  • Model.CountRecords

  • integer

  • number of records returned

  • Model.ElapsedMillisconds

  • integer

  • query duration in milliseconds

  • Model.Records

  • Dictionary<string,object>[]

  • contains the records of the result

  • CAUTION: since the value is stored as an object type, direct comparison operations such as record[‘NAME‘] == ‘Franz‘ are not possible (reference comparison). Instead, comparisons must be done via Equals, e.g. "Franz".Equals(record["NAME"])

  • Model.QueryString

  • NameValueCollection

  • contains the parameters passed with the call

  • access e.g. via: Model.QueryString["Parametername"]

The records in the dictionary can be accessed via Linq:

Model.Records.Where(r=>String.IsNullOrEmpty(Model.QueryString["x"]) || Model.QueryString["x"].Equals(r["x_field"])).OrderBy(r=>r["data_field")

Helper Functions

There are several helper functions (“DataLinqHelper”) that can be used to include additional data or, for example, generate forms. As an abbreviation, “DLH” can be used instead of “DataLinqHelper”:

  • DataLinqHelper.IncludeView(url)

  • Shows data from another view within a view

  • The URL must be entered starting from the endpoint name:

    DataLinqHelper.IncludeView(“ssg-sdet@proj-geb@proj-geb-bestand?GebaeudeId =E313049“)

  • DataLinqHelper.IncludeClickView(url,text)

  • see IncludeView; the content is only loaded and shown when a button is clicked

  • the text parameter refers to the label of the button

  • DataLinqHelper.ResponsiveSwitcher()

  • Creates a button that, when clicked, shows or hides all HTML elements with the class “responsive” within the current table

  • DataLinqHelper.IncludeCombo(id, url, valueField, nameField)

  • Creates a dropdown list with the results of a query

  • id is set as the HTML id attribute

  • url points to the query whose results should be listed

    • e.g. a query with GroupBy

  • valueField fills the option value with the specified field from the results

  • nameField fills the option name with the specified field from the results

  • DLH.UrlEncode(text)

  • Encodes the text for use in a URL

These and further helper functions are listed with examples in the DataLinqHelper help. The link to the help can be found at the top right of the Razor markup code editor when creating views.

JavaScript can also be defined in views within <script> tags. jQuery is already included.

Restricting Query Results - Query

To keep the server load and, above all, the client-side page load time low, it makes sense to restrict the maximum number of query results and fields:

  • for API endpoints against the WebGIS API, this number is fixed at 1000 records, and all columns defined in the CMS are returned.

  • DB queries can be restricted in the SQL statement, e.g.

    SELECT TOP 200 * …

    for MSSQL

    SELECT * … LIMIT 200

    for MySQL, PostgreSQL

    SELECT * … WHERE ROWNUM <= 200

    for Oracle

Ideally, the results should be restricted as much as possible through filtering with (optional) parameters, in order to allow users to make a faster selection and avoid having to search through hundreds of rows.

Restricting / Filtering Query Results

Query results can be restricted using (optional) parameters in the queries. In views, DataLinqHelper.FilterView can be used to build in a filter that provides a simple and clear way to enter/select these filter parameters. In the background, the passed parameters are simply appended to the call URL (see Chapter 4). If filter or sort parameters are already defined via the URL when the view is called, they are already filled in or set in the GUI.

@DLH.FilterView(
    "Filter",
    new Dictionary<string, object>(){
        {"STATUS", new { displayname="Status", source="endpoint@lov-status", valueField="VALUE", nameField="NAME", prependEmpty=true, multiple="multiple"} },
        {"NACHNAME", new { displayname="Nachname" } },
        {"GAS", new { displayname="Nur Gas betroffen", dataType=DataType.Checkbox } },
        {"ERSTELLD_FROM", new { displayname="Datum von", dataType=DataType.Date } },
    }
)

A filter field can be defined as a selection list whose values come from another DataLinq query, see the STATUS field. If needed, multiple list values can also be passed separated by ; (multiple=“multiple“). In the SQL statement, this concatenated string must be split apart again. For a REST API query, the query method of the search field must be defined in the CMS as “In”.

If all filter fields are optional (i.e. a search can also be performed without a single restriction), a generally valid WHERE condition can be defined in SQL statements, with all other optional conditions appended with “AND …”.

The selection lists in the filter can be cascading, meaning one input field depends on another field. Whenever this field is changed via the selection list, the value of the dependent selection list(s) changes.

@DLH.FilterView(
   "Filter",
    new Dictionary<string, object>(){
       {"APP", new { displayname="App(s)", source="read@wlogging-apps", valueField="VALUE", nameField="VALUE", prependEmpty=true }},
       {"TYPE", new { displayname="Type(s)", source="read@logging-types?APP=[APP]", valueField="VALUE", nameField="VALUE", prependEmpty=true } }
    }
)

Here, the TYPE field depends on the APP selection list via the placeholder [APP] (APP=[APP]). Whenever the selection for APP is changed in the filter, the TYPE selection list is refilled. The corresponding query (here, a database query) must of course take the passed APP parameter into account, e.g.:

SELECT
   DISTINCT(TYPE) as VALUE
   FROM LOG_TABLE
   WHERE 1=1

 #if APP
     AND APP = @APP
 #endif

REST API

dienst@cms/queries/abfrage?

#if STATUS
    &status_in={{STATUS}}
#endif
#if NACHNAME
    &nachname={{NACHNAME}}
#endif
#if ERSTELLD_FROM
    &date_from={{ERSTELLD_FROM}}
#endif
#if GAS
    &gas_betroffen=Ja*
#endif
#if _orderby
    &_orderby={{_orderby}}
#endif

SQL

SELECT TOP(200)
    status,
    erstellt,
    ...
FROM tabelle
WHERE 0 = 0

#if STATUS
    and status IN (SELECT value FROM STRING_SPLIT(@STATUS, ';'))
#endif

#if NACHNAME
    and nachname = @NACHNAME
#endif

#if GAS
    and gasanschluss = true
#endif
#if ERSTELLD_FROM
    and erstellt >= CONVERT (date, @ERSTELLD_FROM, 104)
#endif
#if _orderby
    ORDER BY @_orderby
#endif

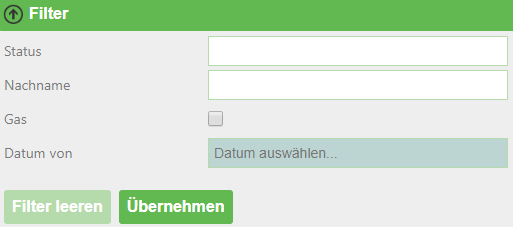

The filter is rendered in the view:

_images/ad5_4.png

Sorting Query Results

In addition to filtering, DataLinqHelper.SortView is another building block available for sorting records in the view via the GUI. The sort fields, like the filter parameters, are appended to the call URL in the background with _orderby=…. Descending sort order is passed with a minus (“-”) before the column name.

@DLH.SortView(
    "Sortierung",
    new Dictionary<string, object>(){
        {"ERSTELLD", new { displayname="Zeitpunkt Erstellung" }},
        {"STATUS", new { displayname="Status" }},
    }
)

These fields must be accepted in the query, see the statements in Chapter 5.4; in the view, the sort tool is rendered:

_images/ad5_6.png

Refreshing - Splitting Static and Dynamic Content

When views are (periodically) refreshed, all content is reloaded. If CSS styles or JavaScript are present in the views, these are also reloaded each time, which can (especially with JavaScript triggers) slow down the page over time (until a “hard” refresh with F5, or a new call via the URL, is performed).

An example of view content that is frequently refreshed on the same client could be hydrographic data – as a kind of dashboard that is refreshed every minute. In the “simple” form, this page consists of tabular data (HTML), a map (JavaScript), CSS styles, and JavaScript for displaying the charts – all in a single view. If this view is reloaded every 60 seconds via DLH.RefreshViewTicker, JavaScript and CSS are added again each time – even though only the tabular data (HTML) changes.

Here, it makes sense to separate the static code that always stays the same (JavaScript, CSS) from the dynamic part (HTML) and only reload the latter. Whenever a view is reloaded, the “onpageloaded” event is fired. The static part can respond to this event, for example to set click listeners:

<script>
    webgis_datalinq.events.on('onpageloaded, function(channel, sender, args){
        webgis.$(".TABDET.clickable tbody tr.extended-click").on("click", function() {
            var id = $(this).attr("stoer_id");
            ...

Queries with Domain Translation

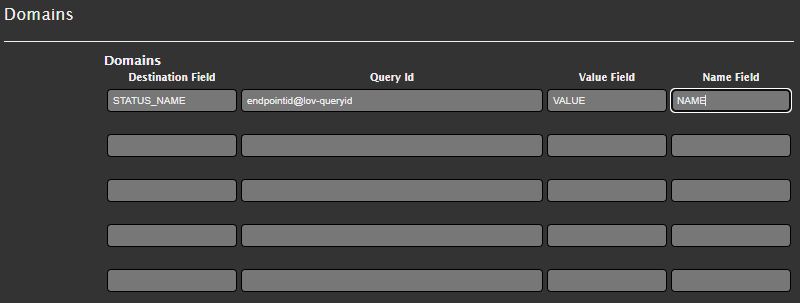

Query domains are used when an attribute of an object in a table is encoded with a value, for example 0 for “forest”, 1 for “meadow”, and 2 for “built-up area”. In a table view, you want to translate these values into the correct names, to make it easier for users to understand.

_images/tipps_domains2.png

The “Destination Field” specifies the column name (can also be an alias) of the field that contains the encoded values. Under “Query Id”, a lookup table is specified that contains, on the one hand, the encoded values, and on the other hand, the translation. “Value Field” and “Name Field” specify the column names of this lookup table. If the field (in the graphic “STATUS_NAME”) is accessed in the view of the original query, not the encoded value (e.g. 1) but the translation (“meadow”) is output.
